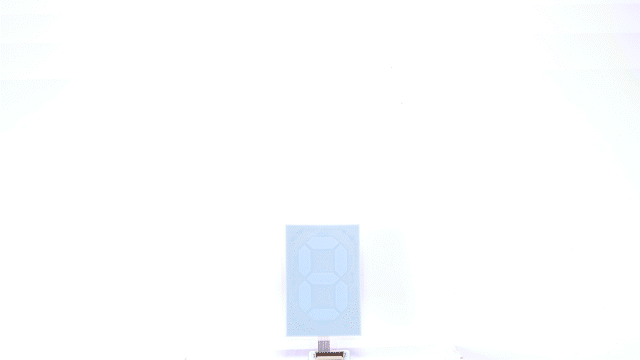

80mm tall Alphanumeric 7-Segment printed e-paper display suitable for digital signage and information display applications.
Secure card payment
Documentation and support
€ 15 EUR
for Handling and Packaging
€ 15 EUR
Detailed info
The single-digit e-paper display can be used for a wide range of digital signage and public information display applications, such as price signage, queue numbers, counters, and temperature visualization. You can put as many digits side-by-side as you need. Make sure to include Ynvisible's display driver your order.
Display parameters
White Reflectance
40%
Contrast Ratio (Yb/Yd)
1:3
Angle Dependency
No, lambertian
Thickness
300 μm
Graphical layout
Segments
Segment dimensions
1 mm - 100 mm
Response time
100-1000 ms
Power parameters
Driving voltage
1.5 V
Driving method
Direct drive
Energy consumption
1 mJ/cm^2
Pulse energy
0.25 mJ/cm^2
Image retention w/o power
1-5 minutes
Operating conditions
-20C - +60C
Activations/Cycles
1.000.000
